About Tru-Hop

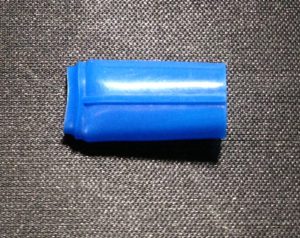

Tru-Hop High Performance Bucking (Gen 2)

The Tru-HopTM is a high quality, high performance, all weather hop-up bucking designed to significantly boost range and accuracy. This hop-up bucking is installed like any other hop-up bucking on the market and requires zero† modification for its use. Additionally, this bucking will give consistent high performance results in a very wide temperature range (-50°C to 230°C/ -58°F to 446°F). This means that you can expect the same range and accuracy regardless if you are playing in cold snow or out in a hot desert environment. Lastly, the material used in this hop-up bucking was chosen from an extensive list of options and was identified as the best choice due to multiple physical properties; one of which is the very high durability that allows the Tru-HopTM to withstand hundreds of thousands of rounds.

† Most barrel brands are completely compatible. Please refer to the “Compatibility” section down below to check if your barrel is compatible.

*Fully detailed instructions on the Tru-Hop installation below



The Science Behind Tru-Hop

The secret to the performance boost lies with the concave contact patch inside of the Tru-HopTM bucking. This contact patch was actually designed from scratch and then tuned through numerous redesigns and experiments. The end result is a shape that maximizes performance and is backed by hours of testing, logging, and re-testing. One of the design goals of the internal contact patch was to maximize the amount of surface area that contacts the BB. This design has two main advantages. The first advantage comes from the increased amount of friction over the top of the BB due to a larger amount of material making contact with the surface. This friction allows the user to over-hop virtually any weight BB with minimal pressure from the hop-up arm. The second advantage is related to the first and will be more pronounced in a typical AEG (automatic electric gun). What happens here is that there is very little loss in muzzle FPS from increasing the hop-up. In other words, you can set your hop-up to the optimum setting for your desired flight path and still retain the full muzzle energy you get at zero hop-up. The loss in FPS an average AEG typically experiences with increasing hop-up pressure comes from the stock bucking nub temporarily retaining the BB while air pressure is built up during firing. During this time, some air is leaked at the bucking-nozzle interface which leads to less kinetic energy at ideal hop-up. In contrast, the Tru-HopTM bucking allows the BB to pass more freely during firing since little hop-up pressure is required. The air losses at the nozzle-bucking interface are therefore reduced and thus more energy is retained during firing. This all translates to farther range at your optimal flight path.

The second major design goal of the concave contact patch was to boost the accuracy of the airsoft gun. It was noticed that the shape of the concave patch changes as hop-up is applied. The final design had to compensate for this change in shape so that proper concavity can be maintained at the optimal hop-up setting. Hours of trial-and-error testing was put into tuning this feature alone so that the compatibility of the bucking was maximized across numerous BB brands. Other features of the bucking were thoroughly studied as well. Simply put, every aspect of this bucking has been designed and tested to yield the maximum amount of performance from an airsoft gun.



Gen2-1Gen2-2

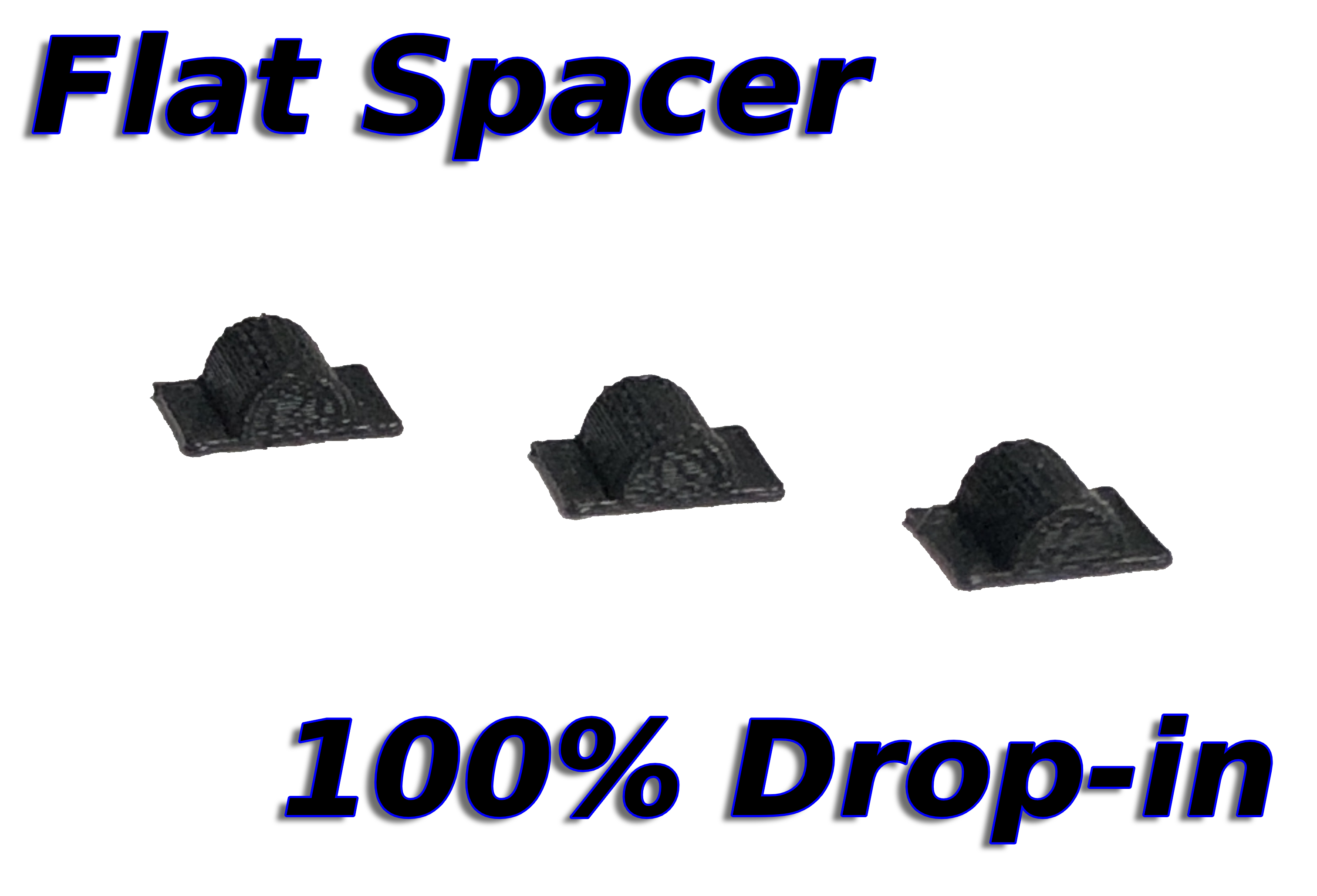

TruSight also decided to go a bit beyond the bucking and designed a companion hop-up spacer that would replace the stock rubber cylinder in a typical hop-up unit. Although this spacer is not a requirement, it was found that additional precision can be squeezed out of your hop-up unit when used in conjunction with the Tru-HopTM bucking. Like the bucking itself, this spacer was also designed from scratch and then fine tuned for performance through trial-and-error and multiple redesigns. The end result is a product that can stand out by itself as an individual contributor to performance.



Gen2-3TH8

















The use of the included concave spacer is optional but highly recommended as it improves both accuracy and precision. In some cases however, the concave spacer will be required for proper Tru-Hop function due to differences in tolerances from hop-up unit to hop-up unit. To install, flatten the bottom of the hop-up arm as shown below. The concave spacer can either be glued to the hop-up arm or used as a loose, stand-alone part. Either way, please ensure that the flat side of the concave spacer is facing the flat side of the hop-up arm.



Gen2-5



Compatibility

Due to the internal shape of the contact patch, there are some barrel requirements that must be met. This bucking was designed to be compatible across a large spectrum of barrel brands. However not all barrels will be compatible. To check for compatibility, one must only ensure that the barrel window meets the minimum dimensions shown below. Ideally the corners of the barrel window should be squared, however the TruSight team has tested rounded corners with success.

Window of Barrel





Installation Instructions

For full detailed instructions (pictures included) on how  to install the Gen 2 Tru-Hop Bucking, click here: Gen 2 Tru-Hop Bucking Installation
